Type 1 ultrapure water system TRITON
€5,520.00
- Product: Type 1 ultrapure water
- Feed: type 3 reverse osmosis, type 2 pure or distillated water
- Dispense rate: 2l/min
- Storage: production on demand, no tank
- Dispenser: non-telescopic, attached
Description
Triton Series: Reliable Ultrapure Water with the Smallest Footprint
The TRITON series ultrapure water systems are designed for maximum flexibility and efficiency at economical pricing. With a modular design and the smallest footprint in its class, the TRITON series adapts perfectly to your laboratory’s unique needs.
Key Features of the TRITON Ultrapure Water Systems
1. Innovative User Interface

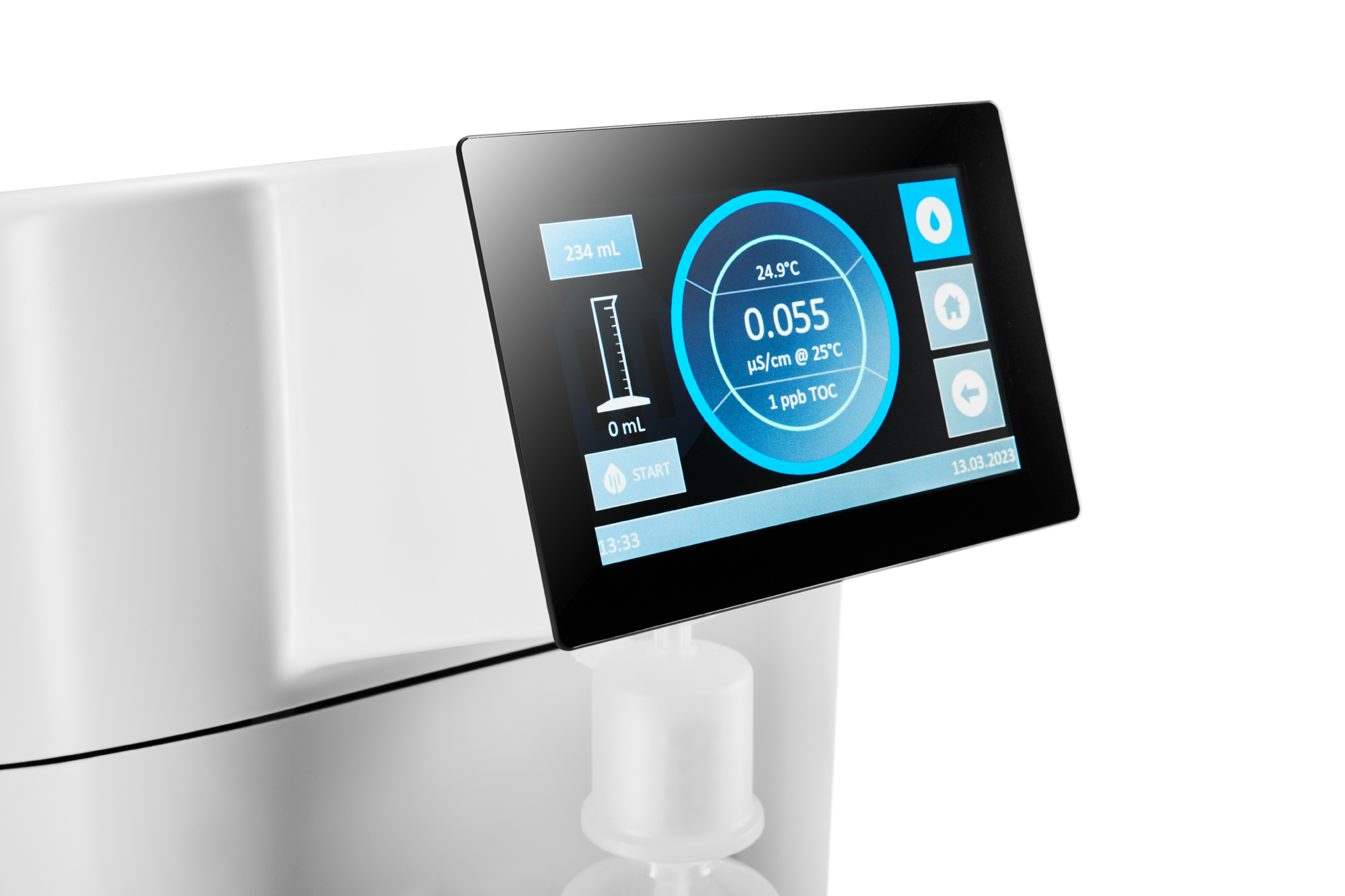

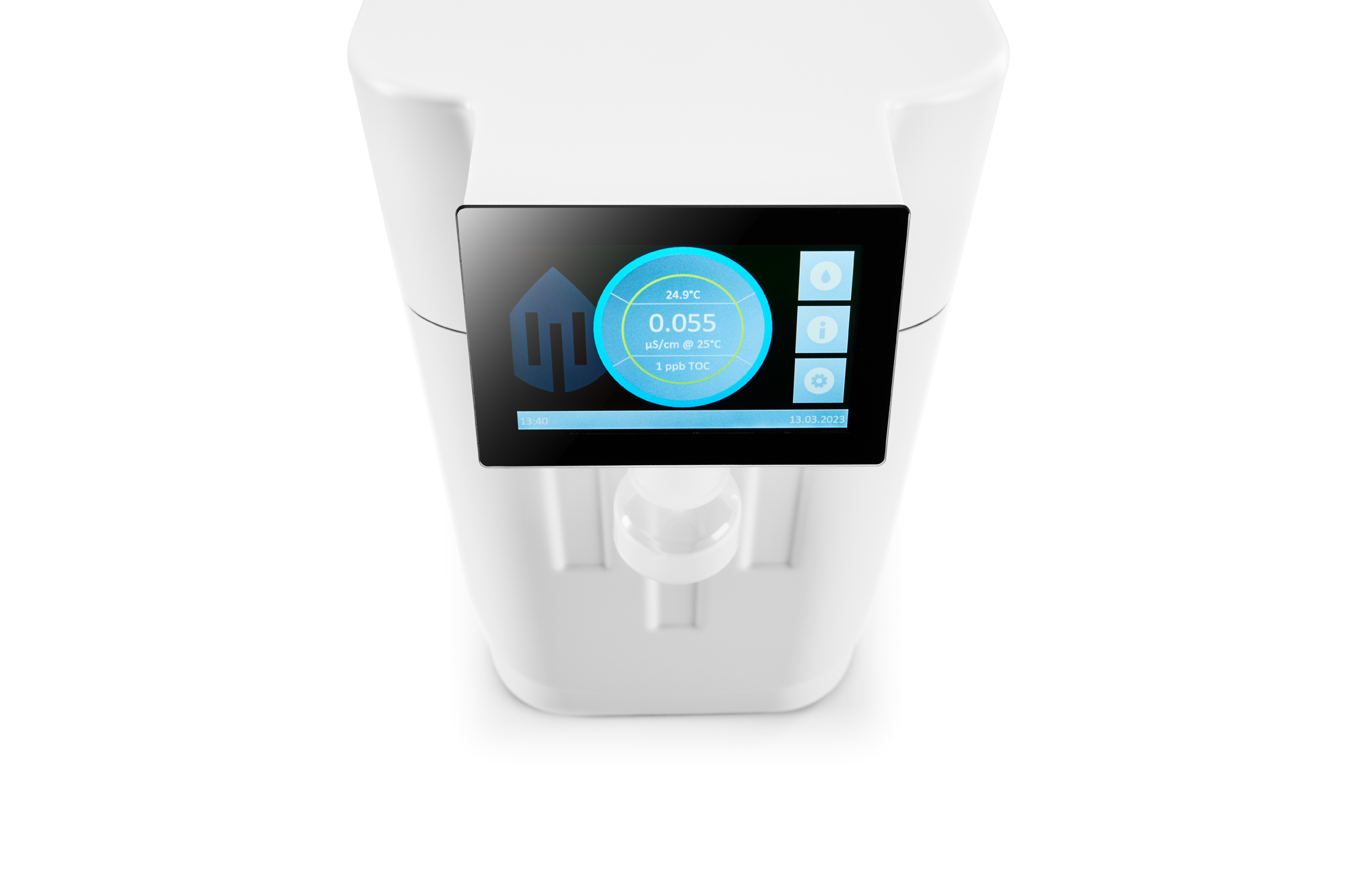

Large Multilingual Touchscreen: Operate the system intuitively using a smartphone-like interface with clear icons for seamless control.
Complete Traceability: Access comprehensive dispensing reports with a history of withdrawals, error logs, and limit violations for consistent quality assurance.
Smart Monitoring Technology: Real-time supervision of essential parameters, including conductivity, resistivity, temperature, and TOC levels. Early alerts for consumable changes or out-of-specification parameters ensure uninterrupted operation and accurate analysis.
ECO Mode for Sustainability: Extend cartridge life by up to 20%, lowering operational costs and reducing waste – a solution that’s both eco-friendly and economical.
2. Compact Design

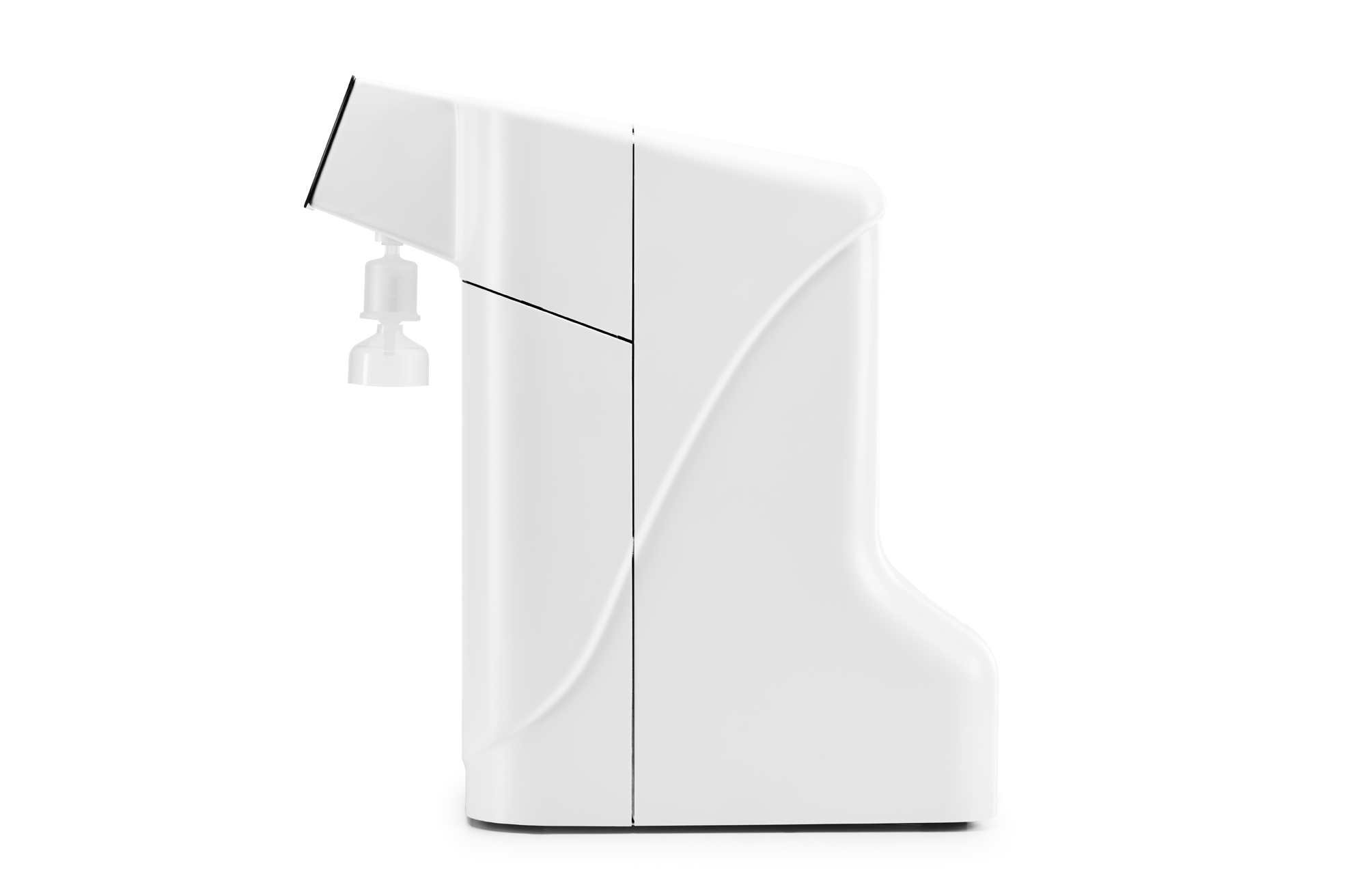

Slim housing: The TRITON series is engineered for functionality and efficiency in a compact form. With its lightweight, slim housing, the system is easy to transport and reposition as needed, offering unmatched convenience.
Optimized lab space: Designed with space constraints in mind, the TRITON system features an extremely small footprint, making it perfect for crowded laboratories or areas with limited space. Its compact design integrates effortlessly into any lab environment, helping you maximize the use of available workspace.
3. Reliable production unit:
Exceptional Purity: TRITON combines advanced technologies to deliver ultrapure water with the highest precision, fully compliant with USP and GLP standards.
Lowest TOC Content for Accurate Results: Optional 185 | 254 nm UV lamp minimizes TOC levels (<2 ppb) and prevents microbial growth. Integrated ultrafilter ensures removal of endotoxins, DNase, RNase, microorganisms, and particles, making the system ideal for cell cultivation and sensitive laboratory applications.
Why Wait? Transform Your Lab Today
Discover the perfect ultrapure water solution tailored to your laboratory’s needs with TRITON. Contact us now to request a quote, schedule a demo, or learn more about our cutting-edge laboratory water purification systems.
Specifications
Feed water requirements
| Feed water quality | Pretreated water using EDI, DI, RO or distilled water |
| Conductivity @ 25°C | < 50µS/cm |
| Total organic carbon (TOC) | < 50ppb |
| Inlet pressure | Max. 6bar |
| Temperature | 5 – 35°C |
Ultrapure, Type 1 water specifications
| Resistivity at 25 °C | 18.2 MΩ∙cm |
| Total organic carbon (TOC) | ≤ 2 ppb
≤ 10 ppb (without UV) |
| Particles content | Particle-free (size > 0.22 µm) |
| Bacteria | < 0.01 CFU/mL
< 0.005 CFU/mL (with ultrafilter) |
| Pyrogens (endotoxins) | < 0.001 EU/mL (with ultrafilter) |
| RNases | < 0.004 ng/mL (with ultrafilter) |
| DNases | < 0.024 pg/µL (with ultrafilter) |
| Flow rate | adjustable up to 2 L/min |
Technical data
| Ambient temperature | +2 – 35°C |
| Supply voltage | 90-240V / 50-60Hz |
| Connected load | 120W |
| Connection size | R ¾“ |
Options and accessories
Options that can be integrated
- 10000578 Option – UV-lamp 185/254nm for TRITON
- 10001027 Option – UV-lamp 185/254nm + Ultrafiltration module + TOC monitor + Feed water measurement
Accessories
- 10000581 Wall mount for production unit TRITON
- 10000582 Qualification documents TRITON
- 10000583 Disinfection kit TRITON incl. one disinfectant
